Centrifugal Pump Design: A Guide for Industrial Buyers & Sourcing Professionals
For import managers, brand owners, and sourcing agents evaluating centrifugal pump suppliers, the core question is: how do you secure a pump design that delivers reliable performance, meets exact application specifications, and aligns with your budget and timeline? This guide explores the critical aspects of modern centrifugal pump design, from hydraulic efficiency and material selection to the practical advantages of partnering with an OEM/ODM-focused manufacturer like Hebei Yuanda Trade Co., Ltd., which leverages robust engineering and China's integrated supply chain for quality-assured, customizable solutions.
Common Industry Pain Points in Pump Procurement
Procuring centrifugal pumps often involves navigating a series of challenges that impact operational efficiency and total cost of ownership.
- Performance Mismatch: Pumps that fail to meet the specific head (pressure) and flow rate (GPM or m³/h) requirements of an application, leading to system inefficiency or failure.
- Premature Failure: Designs using substandard materials or poor casting quality that corrode, erode, or wear quickly under demanding conditions (e.g., abrasive fluids, high temperatures).
- Long Lead Times & Inflexibility: Extended delivery schedules from suppliers unable to adapt to urgent needs or modify standard designs for OEM/ODM requirements.
- Hidden Costs: Issues with after-sales support, lack of compliance documentation (CE, FDA for specific parts), or poor packaging leading to freight damage.
- Communication Barriers: Difficulty in conveying precise technical specifications and receiving accurate, timely engineering feedback from the supplier.
Engineering Solutions Through Advanced Centrifugal Pump Design
Addressing these pain points requires a focus on the fundamental principles and modern execution of centrifugal pump design.
Hydraulic Design & Impeller Geometry

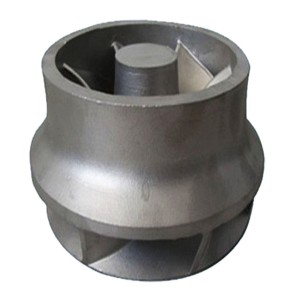

The heart of a centrifugal pump's performance lies in its impeller design. Key parameters include:
- Impeller Type: Closed, semi-open, or open impellers are selected based on fluid characteristics (clean, semi-solid, viscous).
- Specific Speed (Ns): A dimensionless number guiding the optimal impeller shape for a given head and flow duty point.
- Volute/Casing Design: Efficiently converts kinetic energy from the impeller into pressure while minimizing hydraulic losses and radial thrust.
Design Consideration Table:
| Application | Typical Impeller Choice | Common Material (Wet Parts) | Key Design Focus |
|---|---|---|---|
| Clean Water / HVAC | Closed | Cast Iron, Bronze | Efficiency, NPSHr |
| Chemical Processing | Closed or Open | Stainless Steel (316/304), Alloy 20 | Corrosion Resistance, Sealing |
| Slurry / Wastewater | Semi-Open or Open | High-Chrome Cast Iron, Hardened Metals | Abrasion Resistance, Passage Clearance |
Centrifugal Pump Centrifigal Pump centrifugal pumps optimized for high flow rates
Note: The above are common industry examples. Final material and design specifications must be confirmed based on your specific fluid, operating conditions, and regulatory requirements.
Material Selection & Manufacturing Integrity
A superior centrifugal pump design is rendered ineffective by poor casting quality. Hebei Yuanda's expertise in sand casting, die casting, and lost wax casting for materials like cast iron, ductile iron, aluminum, and stainless steel ensures the hydraulic components have the necessary structural integrity, surface finish, and dimensional accuracy. This directly impacts efficiency, cavitation resistance, and service life.
Advantages of Partnering with a Design-Focused Manufacturing Partner
Hebei Yuanda Trade Co., Ltd. (founded in 2006) translates these engineering principles into commercial and operational benefits for global buyers.
- OEM/ODM-Centric Design Flexibility: We adapt standard centrifugal pump designs or develop new ones based on your technical drawings, performance requirements, and branding needs (private labeling).
- Integrated Quality Assurance: Our 5000 m² operational footprint and control over a network of specialized foundries in Northern China allow for rigorous process control, from metallurgy to final machining.
- High-Speed Delivery Leveraging Supply Chain: Proximity to raw materials and component suppliers, combined with experienced logistics planning, enables competitive lead times. Standard pump lead times can range from 30-45 days, with expedited options for urgent projects.
- Transparent Compliance Support: Pumps can be manufactured to support end-product certifications. We provide material certifications and can advise on designs that facilitate compliance with standards like CE (Machinery Directive), FDA (for relevant wetted materials), and ASME, based on the final assembly and application.
Procurement Specifications: What Buyers Need to Know
To facilitate an efficient sourcing process, providing clear specifications is key.
Technical & Commercial Terms
- Key Parameters: Flow Rate (GPM), Total Head (ft or m), Suction Pressure, Fluid Type (viscosity, temperature, solids content), Material of Construction (casing, impeller, shaft), Shaft Sealing Type (mechanical seal, gland packing).
- MOQ (Minimum Order Quantity): Typically starts at 50-100 units for standard designs but can be lower for prototype or high-value ODM projects. Please inquire for a precise quote.
- Lead Time: Generally 30-60 days ex-works after order confirmation and technical finalization, subject to complexity and order volume.
- Customization: Full support for OEM/ODM, including impeller trimming, port reconfiguration, mounting modifications, and brand labeling.
- Packaging & Logistics: Export-standard wooden crates or pallets. Standard trade terms are FOB Tianjin/Xingang or CIF to your nominated port.
- After-Sales: Technical documentation, warranty on materials and workmanship (terms specified per order), and support for spare parts procurement.
Feedback from Industry Professionals
Michael R., Procurement Manager (Water Treatment, USA): "We needed a custom stainless steel pump volute for a retrofit project. YD's engineering team understood the drawings perfectly. The castings arrived with excellent surface quality and fit our existing assembly without issue. The communication was direct and technical, which we appreciate."
Sarah L., Brand Owner (Agricultural Equipment, Australia): "Sourcing our private-label centrifugal pumps for nearly 5 years. Their strength is consistency in quality and the ability to handle our specific material grade requests. Their ODM process makes it easy for us to bring a differentiated product to our market."
David K., Sourcing Agent (Industrial Machinery, UK): "I partner with Hebei Yuanda for clients needing robust cast iron and ductile iron pump components. They manage the complexity of the foundry process well, and their quality control reports provide the transparency my clients demand. Delivery timelines are usually met as projected."
Next Step: Request a Technical Consultation
If you are evaluating suppliers for a centrifugal pump project—whether a standard product, a modified design, or a fully custom ODM solution—direct engineering dialogue is the fastest path to a accurate quote and reliable product.
Contact our engineering and sales team today to discuss your specific pump design parameters, material needs, and volume requirements.
Hebei Yuanda Trade Co., Ltd. Tel: +86-311-808-126-83 WhatsApp: +8619333738338 (Ben) / +8619333736198 (Linda) Email: info@ydcastings.com Address: No.563 Xinhua Road, Shijiazhuang City, Hebei Province, P.R. China Visit Contact Page for Detailed Inquiry Form
About the Author: This article was compiled by Ben Richardson, a Senior Technical Procurement Consultant with over 12 years of experience in facilitating industrial component sourcing from global supply chains, with a specialization in fluid handling equipment and custom metal castings. The insights are based on industry best practices and manufacturer capabilities.
Disclaimer: All technical parameters, MOQs, lead times, and compliance capabilities mentioned are for reference based on typical industry practice and stated company profiles. Final specifications, pricing, and terms are subject to change and must be confirmed in a formal quotation or order confirmation from Hebei Yuanda Trade Co., Ltd.
