The Impact Of Pump Casing Geometry On Fluid Flow And Pressure Distribution

Pump casing geometry plays a crucial role in determining the efficiency and effectiveness of fluid flow and pressure distribution within a pump. The design and shape of the casing directly influence how fluid moves through the pump, affecting everything from energy consumption to the longevity of the pump components. Understanding the relationship between casing geometry and fluid dynamics is essential for optimizing pump performance, particularly in applications where precision and efficiency are paramount.

The Role of Pump Casing Geometry in Fluid Dynamics

The geometry of the vortex casing is integral to how fluid flows through the pump. In centrifugal pumps, for example, the fluid is introduced into the pump and is propelled by the rotating impeller. As the fluid exits the impeller, the design of the casing guides its flow towards the discharge point. The shape and contours of the casing must be carefully engineered to ensure that the fluid follows a smooth path, minimizing turbulence and energy loss.

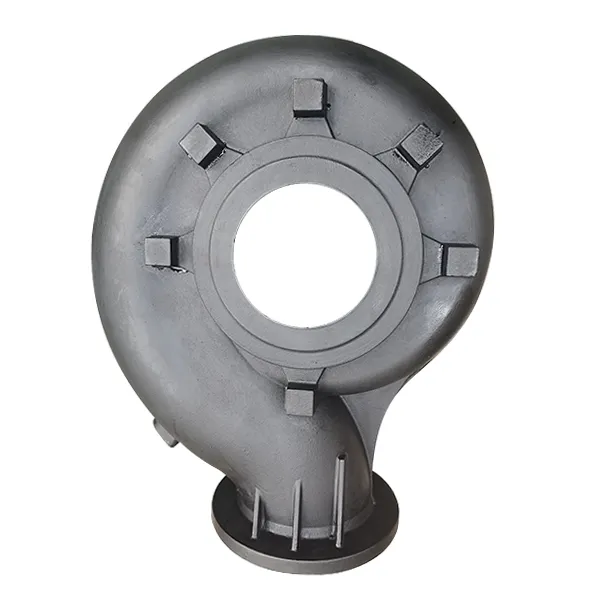

Volute casings, which are commonly used in centrifugal pumps, are designed with a spiral shape that gradually increases in cross-sectional area. This design allows the kinetic energy of the fluid to be converted into pressure energy efficiently, as the fluid moves from the high-velocity region near the impeller to the discharge point. By controlling the expansion of the flow path, the volute casing helps to maintain consistent pressure and flow rates, which are critical for the pump’s overall performance.

The geometry of the pump casing also affects the formation of vortices and eddies, which can cause energy losses and reduce the efficiency of the pump. A well-designed casing minimizes these flow disturbances, ensuring that the fluid moves through the pump with minimal resistance. This optimization of fluid flow is essential for achieving high hydraulic efficiency and reducing operational costs.

Pressure Distribution and Its Influence on Pump Casing Performance

Pressure distribution within the pump casing is another critical factor influenced by the geometry of the casing. As fluid moves through the pump, the pressure must be evenly distributed to prevent localized stress on the pump components, which can lead to wear and failure over time. The design of the casing must ensure that pressure is maintained at the desired levels while avoiding excessive pressure drops or spikes.

In single-volute casings, pressure distribution can be uneven, leading to imbalances in the forces acting on the impeller and shaft. This imbalance can cause vibrations, increased wear, and ultimately reduce the lifespan of the pump. To address this issue, double-volute casings are often used, particularly in pumps that handle high flow rates or operate under high-pressure conditions. The double-volute design provides a more balanced pressure distribution by splitting the flow into two symmetrical paths, reducing the radial forces on the impeller and shaft.

The uniformity of pressure distribution also affects the cavitation potential within the pump. Cavitation occurs when localized pressure drops below the vapor pressure of the fluid, causing vapor bubbles to form. These bubbles can collapse violently, causing damage to the pump casing and impeller. By designing casings that maintain consistent pressure levels, engineers can reduce the risk of cavitation, thereby improving the reliability and longevity of the pump.

The Impact of Pump Casing Design on Efficiency

The efficiency of a pump is heavily influenced by the design of the casing. The geometry of the casing affects how energy is transferred from the impeller to the fluid, and any inefficiencies in this process can lead to increased energy consumption and operational costs. A well-designed casing maximizes the conversion of kinetic energy into pressure energy, ensuring that the pump operates at its optimal efficiency.

One of the key factors in casing design is the relationship between the impeller and the casing. The clearance between the impeller and the casing must be precisely controlled to minimize hydraulic losses. If the clearance is too large, fluid can recirculate within the pump, reducing efficiency and causing additional wear on the components. Conversely, if the clearance is too small, frictional losses increase, which also reduces efficiency. By optimizing the geometry of the casing to match the specific characteristics of the impeller, engineers can achieve the best balance between efficiency and performance.

Additionally, the design of the casing can influence the pump’s ability to handle different flow rates. In pumps with a fixed geometry, efficiency can drop significantly when operating outside of the design flow rate. Variable geometry casings, which can adjust to different operating conditions, offer a solution to this problem by maintaining high efficiency across a broader range of flow rates. This adaptability is particularly important in applications where the pump must handle varying loads or where energy efficiency is a priority.

Advances in Pump Casing Geometry and Computational Fluid Dynamics

Recent advances in computational fluid dynamics (CFD) have revolutionized the design of pump casings, allowing engineers to model and simulate fluid flow and pressure distribution with unprecedented accuracy. CFD tools enable the optimization of casing geometry by providing detailed insights into how changes in shape and design affect fluid dynamics. These simulations can identify potential issues such as turbulence, pressure drops, and cavitation before the pump is ever manufactured, reducing the need for costly prototypes and testing.

Through CFD analysis, engineers can experiment with different casing geometries to find the most efficient design for a given application. This approach has led to the development of innovative casing designs that offer improved performance, reduced energy consumption, and longer pump life. As the technology continues to evolve, CFD will play an increasingly important role in the design of pump casings, leading to even greater advancements in pump efficiency and reliability.
