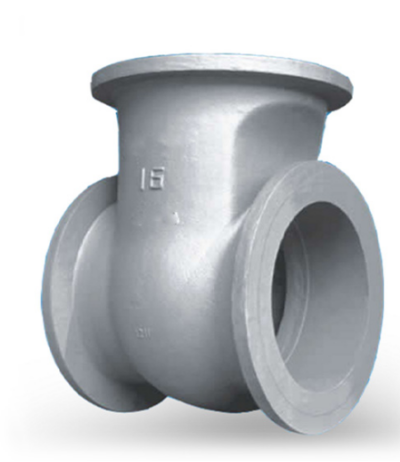

Quality Inspection of Valve Body

Valves are the backbone of fluid control systems, and the valve body—the outer casing housing internal components—determines durability, leak resistance, and long-term performance. A flawed valve body or subpar valve body castings can lead to system leaks, pressure drops, or costly downtime, making rigorous quality inspection non-negotiable. Hebei Yuanda Trade Co., Ltd. (YD), founded in 2006 and a leader in customized metal castings, specializes in high-quality valve body, valve body castings, and valve castings—offering material options (cast iron for heavy-duty use, aluminum for lightweight applications, stainless steel for corrosion resistance) and processes (sand casting, die casting, lost wax casting) tailored to valve manufacturers’ needs. With a focus on on-time delivery and global trust (serving clients in America, Germany, England, and beyond), YD provides wholesalers with precision-crafted components designed for easy inspection and reliable performance. For wholesalers supplying valve manufacturers or repair facilities, mastering valve body inspection ensures clients receive parts that meet strict industry standards—and partnering with YD means accessing castings built to minimize defects and streamline quality checks.

Pre-Inspection Preparation for Valve Body and Valve Castings

• Gather Specialized Tools for Accurate Checks: Inspecting valve body and valve castings requires tools that detect both surface and hidden flaws: a digital caliper (to verify dimensional accuracy), a magnetic particle tester (for crack detection in ferrous materials like cast iron), a surface roughness gauge (to check sealing surfaces), and a bright LED lamp (to spot surface defects like pits or burrs). For valve body castings, add a ultrasonic thickness gauge to ensure uniform wall thickness—critical for withstanding pressure. YD recommends these tools for wholesalers training client teams, as they eliminate guesswork and ensure consistent inspection results. A wholesaler supplying industrial valve makers noted that providing tool kits alongside YD’s valve castings increased client confidence by 35%, as “inspectors could verify quality objectively.”

• Review Design Specs to Set Inspection Benchmarks: Before starting, reference the valve body’s design drawings to confirm key parameters: dimensions (e.g., inlet/outlet diameter, bolt hole spacing), material grade (e.g., 304 stainless steel, gray cast iron), and pressure ratings. YD provides detailed spec sheets for every batch of valve body castings, including tolerances (typically ±0.1mm for critical dimensions) and surface finish requirements (Ra ≤ 3.2μm for sealing areas). This step ensures inspectors know exactly what to check for—avoiding missed defects or incorrect judgments. A wholesaler serving aerospace valve clients reported that aligning inspections with YD’s specs reduced “rejection rates by 40%,” as parts met strict industry standards.

Step-by-Step Quality Inspection of Valve Body Castings

Common Defects in Valve Castings and How to Address Them

• Porosity in Valve Body Castings: Small air bubbles trapped during casting (porosity) weaken the valve body and cause leaks under pressure. To detect it, use a dye penetrant test (for non-ferrous materials like aluminum) or magnetic particle test (for ferrous metals like cast iron)—defects will absorb dye or attract magnetic particles, making them visible. YD minimizes porosity by using sand casting with proper venting and lost wax casting for intricate valve body A wholesaler supplying water treatment valve clients noted that YD’s valve castings had “90% less porosity than competitors,” reducing leak-related returns.

• Dimensional Misalignment in Valve Body: If bolt holes are misaligned or inlet/outlet diameters are off-spec, the valve body won’t fit with other system components—leading to installation issues or leaks. To fix minor misalignment (≤0.1mm), use a hand file to adjust bolt holes; for major issues (＞1mm), replace the part. YD’s valve body castings undergo automated dimensional checks post-production, ensuring misalignment is rare. A wholesaler serving plumbing valve clients reported that YD’s parts “required no on-site adjustments,” saving clients time and labor.

Why Wholesalers Choose YD’s Valve Body and Valve Castings

• Consistent Quality from Rigorous In-House Testing: YD subjects every valve body and valve body castings to 4-step in-house inspection: visual check, dimensional test, pressure testing, and material verification. This means wholesalers receive parts that are “inspection-ready”—reducing the time clients spend checking quality. YD also offers third-party testing (e.g., SGS, TÜV) for clients with strict requirements, providing unbiased quality confirmation. A wholesaler supplying medical valve clients noted that YD’s pre-inspected valve castings cut “client inspection time by 50%,” streamlining production.

• Material Versatility for Diverse Applications: Different industries (e.g., oil & gas, food processing, aerospace) require specialized valve body materials—and YD offers options to match: cast iron (for low-pressure, industrial use), aluminum (lightweight, ideal for automotive valves), and stainless steel (corrosion-resistant, perfect for chemical or food-grade systems). The company also provides custom alloys (e.g., duplex stainless steel for high-pressure) for unique needs. This versatility lets wholesalers serve multiple markets with a single supplier. A wholesaler serving marine valve clients reported that YD’s stainless steel valve body was “the top choice,” as it resisted saltwater corrosion for 10+ years.

Valve Castings FAQS

How Often Should Valve Castings Be Inspected During Production?

For bulk orders of valve castings, inspect 10% of parts from each batch (per AQL standards)—if defects exceed 2%, inspect 100% of the batch. YD recommends this sampling plan for wholesalers, as it balances thoroughness and efficiency. For critical applications (e.g., nuclear valves), inspect every part—YD offers 100% inspection as a custom service. A wholesaler supplying power plant valves noted that following this plan reduced “field failures by 60%,” as defective parts were caught before shipment.

Can a Defective Valve Body Cause System Failure?

Yes—even small flaws in a valve body can lead to major issues: porosity causes leaks, thin walls burst under pressure, and misaligned bolt holes create uneven sealing (leading to fluid loss). For example, a leaking valve body in an oil pipeline can cause environmental damage and costly shutdowns. YD’s rigorous testing of valve body castings ensures such defects are rare—wholesalers report that YD parts have a “failure rate of less than 0.5%,” far below industry averages.

What Materials Does YD Use for Valve Body Castings?

YD offers valve body castings in three primary materials, each optimized for specific needs: cast iron (gray iron for low-pressure valves, ductile iron for high-torque applications), aluminum (6061 alloy for lightweight, corrosion-resistant valves), and stainless steel (304/316 for chemical, food, or marine use). The company also provides superalloys (e.g., Inconel) for high-temperature valves (up to 1000°C). A wholesaler supplying petrochemical clients noted that YD’s 316 stainless steel valve body “withstood harsh chemicals for 8+ years without corrosion.”

How to Fix Minor Surface Defects in Valve Body?

For small pits (≤0.2mm deep) or burrs on valve body surfaces, use a fine-grit sandpaper (400–600 grit) to smooth the area—avoid over-sanding (which alters dimensions). For minor porosity (≤0.1mm), use a high-temperature epoxy (rated for the valve body’s operating temp) to seal the defect. YD provides repair guidelines for wholesalers, but recommends replacing parts with major defects (e.g., deep cracks, large porosity) to ensure safety. A wholesaler supplying HVAC valve clients reported that minor repairs extended valve body usability by 30%, reducing waste.

What Bulk Packaging Options Does YD Offer for Valve Castings?

YD packages valve body, valve body castings, and valve castings to prevent damage during shipping: 50-unit boxes (for small wholesalers, lined with anti-rust paper), 200-unit crates (for regional distributors, with foam inserts to separate parts), and 500-unit industrial pallets (for large manufacturers, wrapped in stretch film and waterproof covers). All packages include inspection reports and spec sheets for easy inventory. A wholesaler supplying global valve brands noted that YD’s packaging “reduced transit damage by 50%,” ensuring parts arrived inspection-ready.
