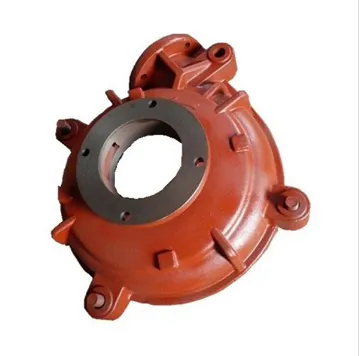

Pump Casing: An Essential Component in Fluid Transfer Systems



Pump casing, as a crucial part of fluid transfer systems, plays a vital role in the efficient and reliable operation of pumps. It houses the pump impeller and other internal components, providing a fluid path for the liquid being pumped. This article delves into the importance, design, types, and maintenance of pump casings, highlighting their significance in various industries.





Importance of Pump Casing



Pump casings are designed to ensure that the pump operates smoothly and efficiently. They protect the internal components of the pump from damage and wear, while also guiding the fluid through the pump. The shape and design of the casing significantly impact the pump's performance, including its flow rate, pressure, and efficiency.



Design and Construction of Pump Casing



Pump casings are typically manufactured from durable materials such as cast iron, stainless steel, or other alloys, depending on the application and operating environment. The design of the casing varies depending on the type of pump, but it generally includes a suction port, a discharge port, and an impeller housing.



The suction port is where the fluid enters the pump, while the discharge port is where the pressurized fluid exits. The impeller housing contains the impeller, which rotates to impart kinetic energy to the fluid. The casing's internal walls are carefully shaped to guide the fluid smoothly through the pump, minimizing turbulence and energy loss.



Types of Pump Casings



Pump casing  can be classified into several types based on the pump's design and operating principles. Some common types include:



Volute Casing: This type of casing is commonly used in centrifugal pumps. It has a spiral shape that gradually increases in cross-sectional area towards the discharge port. This design helps to convert the kinetic energy of the fluid into pressure energy as it flows through the pump.

Diffuser Casing: Diffuser casings are similar to volute casings but include additional components called diffusers. These are stationary vanes that further convert the fluid's kinetic energy into pressure, enhancing the pump's efficiency.

Axial Flow Casing: Used in axial flow pumps, this type of casing has a straight or slightly curved fluid path. The impeller rotates like a propeller, pushing the fluid in an axial direction.

Radial Flow Casing: Radial flow pumps typically use a casing with a radial fluid path. The impeller is positioned perpendicular to the flow direction, imparting kinetic energy to the fluid as it rotates.



Maintenance and Inspection of Pump Casing



Regular maintenance and inspection of pump casings are crucial to ensure the pump's long-term performance and reliability. Common maintenance tasks include:



Cleaning: Regular cleaning of the casing to remove debris, scale, and other contaminants that can affect pump performance.

Inspection for Wear and Damage: Checking for cracks, wear, and corrosion on the casing's internal and external surfaces.

Alignment: Ensuring that the pump casing and other components are properly aligned to prevent vibration and wear.

Lubrication: If the pump casing has bearings or other moving parts, ensuring they are properly lubricated to reduce friction and wear.





Pump Casing Apply in Various Industries



Pump casings are used in a wide range of industries, including:



Water and Wastewater Treatment: Pump casings in these applications must be able to handle corrosive and abrasive fluids, as well as withstand high pressures and temperatures.

Petrochemical and Chemical Processing: In these industries, pump casings must be compatible with the chemicals being pumped and capable of operating under extreme conditions.

Power Generation: Pump casings in power plants are often designed to handle large volumes of water at high pressures and temperatures, such as in cooling systems and boiler feed pumps.

Agricultural Irrigation: Pump casings used in irrigation systems must be durable and reliable, capable of operating continuously under varying conditions.



Pump casings are a vital component in fluid transfer systems, playing a crucial role in the efficient and reliable operation of pumps. Their design, construction, and maintenance are critical factors in determining the pump's performance and lifespan. By understanding the importance of pump casings and the various types and applications, industries can ensure that their fluid transfer systems operate smoothly and efficiently.
